Full Specification

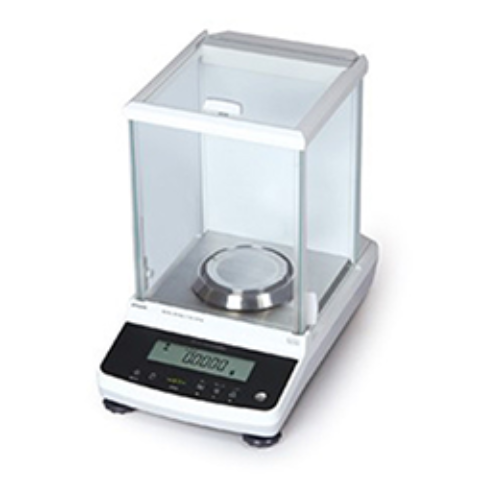

Download detailed product specifications, user manuals, and compliance documents to learn more about the features and technical performance of the ATX Series Analytical Laboratory Balance.
Product Specification
| Approvals: | Non Approved |
|---|---|
| Capacity: | 82g to 320g |
| Dimensions: | 91mm Ǿ |
| Graduations: | 0.001g |
| Power supply: | Mains |
| Warranty: | 1 year warranty |
Additional Features
- Internal, automatic calibration; includes wind chamber
- High/Go/Low - compare targets to sample values
- Bright clear LCD display
- UniBloc technology for instant, high accuracy weight readings
- Automatic internal calibration
- Windows Direct for easy data communication
- RS-232 connectivity
Downloads & Documents
| General Information | Cleaning Instructions |
|---|---|
| General Information | Warranty Policy |
Frequently Asked Questions
Analytical balances are weighing scales with extreme high accuracy, designed for weighing very small quantities in a sub-milligram range.
Before ordering, consider what the balance will be used for, the materials being used and the the quantity being weighed. The ATX Series has graduations to 0.001g (0.1mg).
As standard, every Shimadzu balance from Marsden comes with WindowsDirect software. This software allows you to connect the balance to your PC, and when Print is pressed the weight information is sent to an open document, such as an Excel file.
All that’s needed to connect the balance to your PC is an I/O to RS-232 cable (not included).
The ATX Series features a wind chamber to protect the surface of the scale, ensuring weight readings are precise and unaffected by the environment.
A Piece Counting function means batch weighing is easy; the scale can count multiple identical items quickly without them needing to be counted by hand. Upto five different sample weights can be easily entered, stored and recalled for later use. The comparator function allows the user to compare samples to target values or pass/fail criteria.
Menu settings on the scale can be protected by a password. This can be set by the user. Then, each time the button is pressed for the operation menu, the password will have to be entered.
