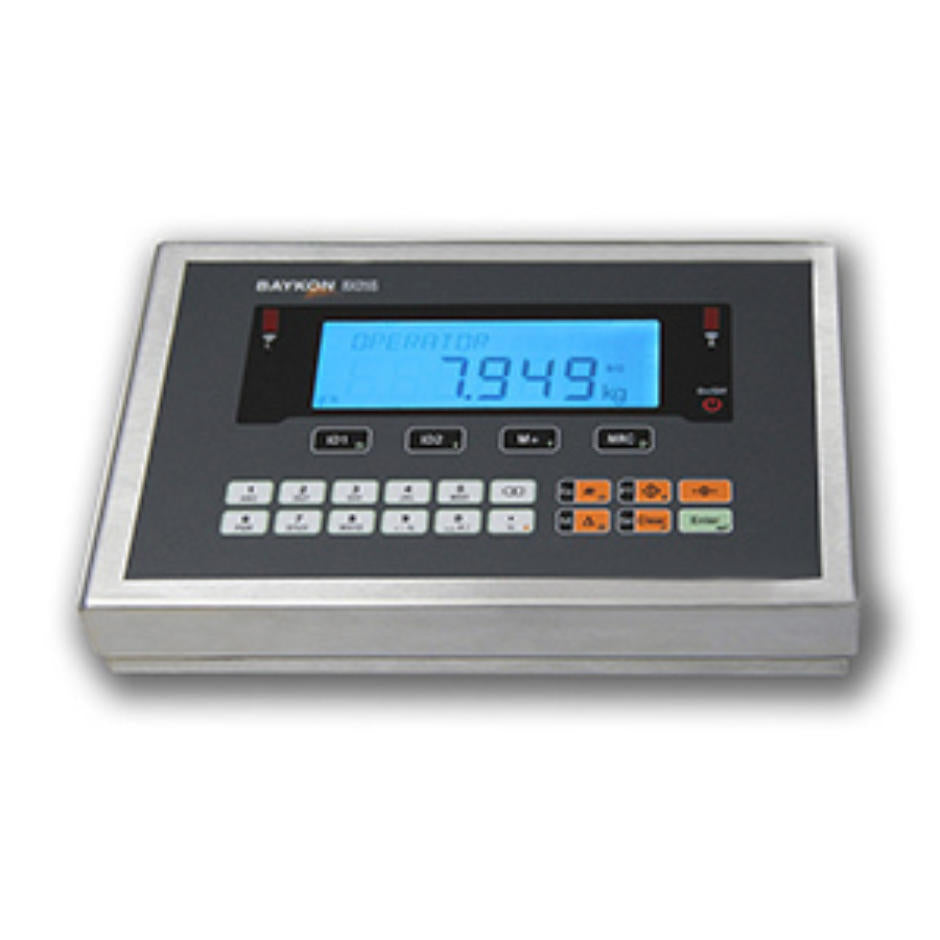

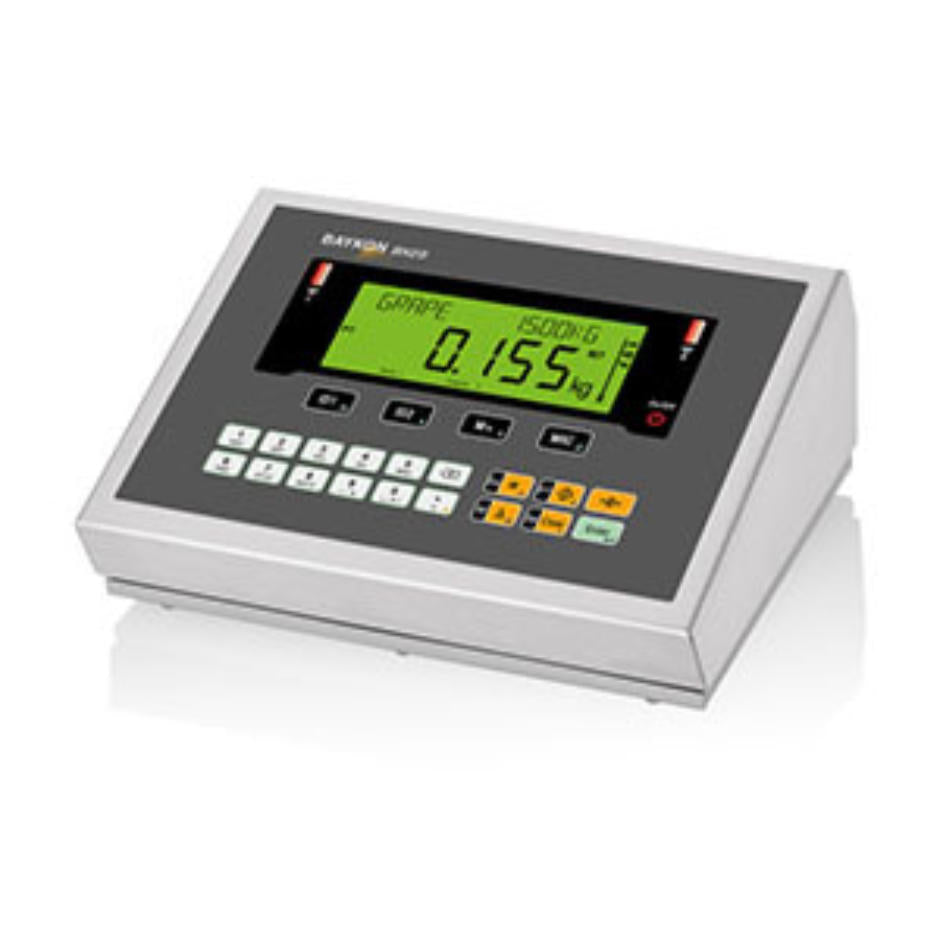

Baykon BX25S Advanced Weighing Indicator
Baykon BX25S Advanced Weighing Indicator
Baykon BX25S Advanced Weighing Indicator
Baykon BX25S Advanced Weighing Indicator
Baykon BX25S Advanced Weighing Indicator

Baykon BX25S Advanced Weighing Indicator

£995.00 Ex VAT (£1,194.00 In VAT)
  • Advanced weighing indicator with programmable functions
  • Class III Approved indicator
  • Stainless steel, IP67 protected for wet and harsh environments
  • Modbus RTU and Modbus TCP are included as standard
  • Equipped with two infra-red touch-free keys for hygienic operation
  • Ethernet and USB ports as standard
  • Optional dual-scale input board, with total weight functionality
  • eCAL electronic calibration
£995.00 Ex VAT (£1,194.00 In VAT)
Item In Stock | Usually Dispatched in 24 Hrs
Everything you need to know

Full Specification

Download detailed product specifications, user manuals, and compliance documents to learn more about the features and technical performance of the Baykon BX25S Advanced Weighing Indicator.

Product Specification

Alibi memory:1,000,000 weighing records (optional)
Approvals:Class III Approved
Capacity:N/A
Data output:Opto isolated 2 pcs RS232C and RS485 (with Modbus RTU), ethernet TCP/IP and USB
Digital output:Opto isolated 4 inputs programmable for zeroing, taring, print, fieldbus controlled input etc. Inputs are set automatically to certain functions at checkweighing, classifying, filling etc
Display dimensions:22mm digit height
Display resolution:99,999 division
Graduations:N/A
Indicator dimensions:250mm x 99mm
Internal resolution:16,000,000 internal
Power source:DC, Mains AC
Product memory size:500 different products
Programmable keys:3 function keys and 2 touch free keys
Weighing units:g, kg, oz, lb

Additional Features

  • Stainless steel, IP67 rated
  • Livestock and dynamic weighing

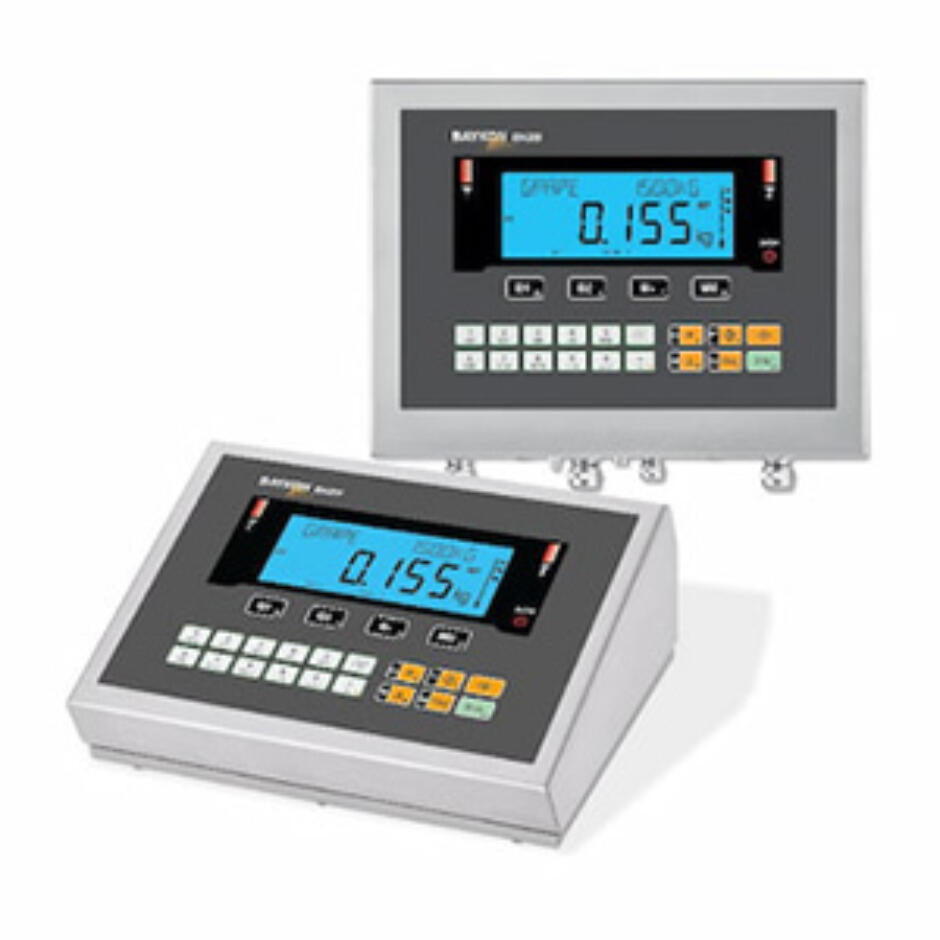

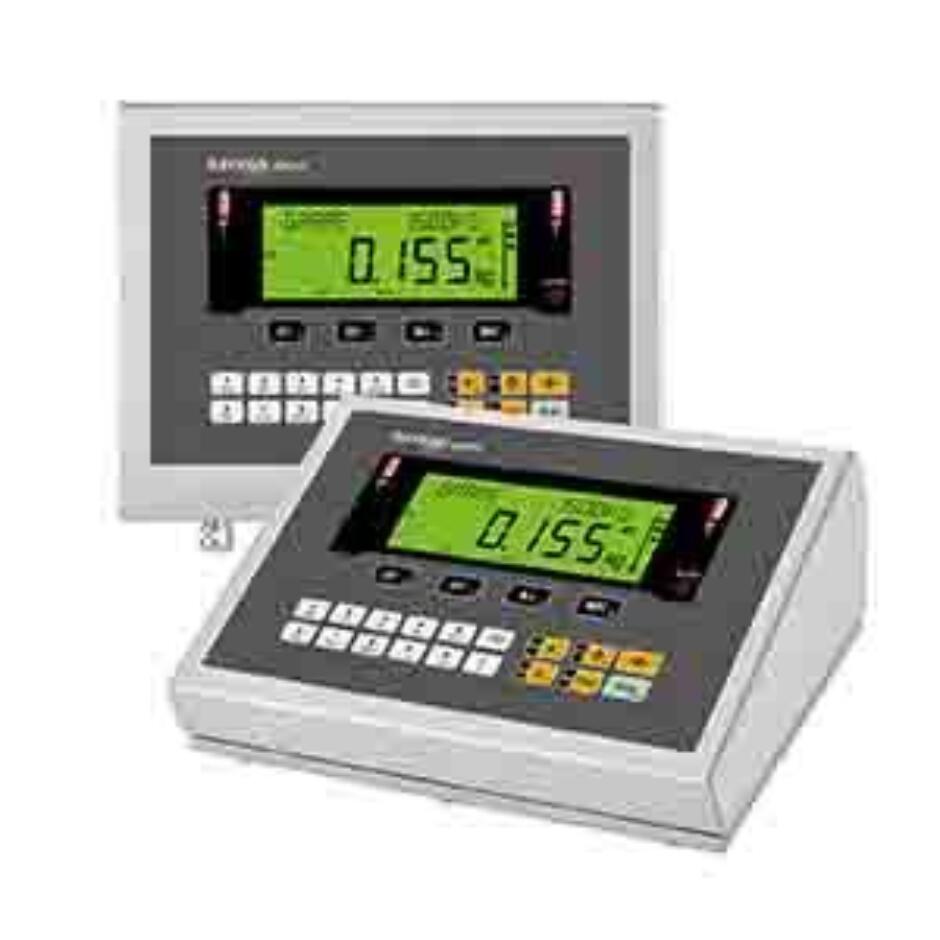

  • Desk or Wall mounted
  • LCD with multi-colour backlight, 6 digits 22mm in heigh weigh display and 16 digits 8mm in height alphanumeric information display
  • Labelling
  • Check weighing
  • Piece counting
  • Totalisation of the sequential weighing
  • In-built Hi/Lo alarm and buzzer
  • Rechargeable Li-ion long life battery

Frequently Asked Questions

Purchase the Baykon BX25S if you are in the market for a a top-tier, multi-functional solution designed to meet the needs of any weighing task. OIML-approved and featuring an IP67-rated stainless steel housing, the BX25 delivers reliable and accurate performance, even in wet, hygienic, and harsh environments.

With its affordable price and impressive features, it’s a versatile option for various applications.<br />

Equipped with two infra-red touch-free keys for hygienic operation, with Ethernet and USB ports as standard, the BX25 is a network-ready solution straight out of the box. Its optional dual-scale input board, with total weight functionality, enhances its flexibility, making it suitable for almost any weighing application. Modbus RTU and Modbus TCP are also included as standard, adding to its impressive connectivity options including all key fieldbus protocols.

The BX25 offers quick codes for easy setup and a range of diagnostic tools such as live mV readings, peak loads, and built-in hardware tests. Its built in eCAL electronic calibration omits the need for test weights, perfect for heavy capacity scales.

For information on the optional extras that are available and how they can be tailored to your needs, please speak to a member of the Marsden team today.

The BX25S is a versatille weighing indicator that can be paried as standard with a wide range of various weighing bases to ensure that you are able to find a suitable weighing solution.

If you would like something lightweight and portable, opt for the BX25S with the HSS base. Looking for something larger for use in a factory, purchase with a Marsden platform.

For support on finding the right weighing solution for you, please reach out to a member of the Marsden team who will be more than happy to help.
