Full Specification
Download detailed product specifications, user manuals, and compliance documents to learn more about the features and technical performance of the Marsden M-930 Pit Mounted Bed & Trolley Weigher.
Product Specification
| Approvals: | Class III Approved |
|---|---|
| Battery life: | Up to 40 hours of continuous use |
| Bespoke: | Other Dimensions Available on Request |
| Capacity: | 600kg to 1000kg |
| Dimensions: | 1200mm x 1200mm, 1500mm x 1500mm |
| Graduations: | 200g to 500g |
| Power supply: | Internal rechargeable battery |
| Warranty: | 8 year warranty |
Additional Features
- High capacity scale for mounting in the floor
- Designed to weigh hospital beds and trolleys
- Tare and Hold functions
- Full numeric keypad for easy BMI calculation
- Supplied with a pit frame for easier installation
- Suitable for A&E departments
- Auto power-off after 3 minutes
- Connectivity options avaialble
- Contact us to further tailor this device to suit your requirements
Downloads & Documents
| Pre-Acquisition Questionnaire (PAQ) | M-930 PAQ |
|---|---|
| Product Brochures | M-930 Product Brochure |
| General Information | Cleaning Instructions |
| General Information | Warranty Policy |
Frequently Asked Questions
Class III Approved medical scales are legal for monitoring, diagnosis or treatment of patients. Non-approved medical scales must not be used for this purpose. Class III Approved weighing scales can be identified by an 'M' logo, usually found on the scale's data plate.
The Non-Automatic Weighing Instruments (NAWI) directive was made part of UK law in January 1993 and specifies the applications that require approved weighing scales. Only scales which use metric units are legal for controlled purposes.

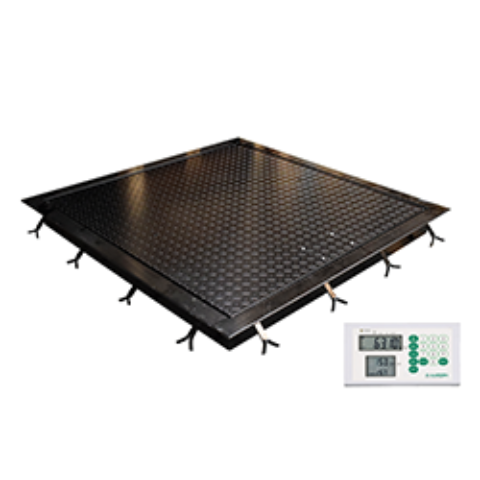

The M-930 is perfect for hospital departments, such as A&E, where the weight of a patient in a bed or trolley needs to be taken quickly. The scale is designed to be set into the ground meaning it can be flush with the floor - no ramps are required.
Pit mounted weighing scales are designed to be sunk into the ground. The M-930 comes with a pit frame for positioning and supporting the scale within a pre-prepared pit. Tare/Preset Tare can be used to remove the weight of the bed from the reading and get an accurate weight reading for the patient.
The M-930 has a choice of capacity and graduation options: either 600kg x 0.2kg or 1500kg x 0.5kg. A choice of dimensions are also available. It also le has a Hold and BMI functions to make weighing easier.
The indicator can be mounted or a column or a wall. By adding the optional printer, a copy of the patient’s weight can be filed without the risk of human error. The M-930 is backed by the Marsden 4 Year Warranty.
Need more information?
Contact us to find out more information about Marsden baby scales.
