Full Specification

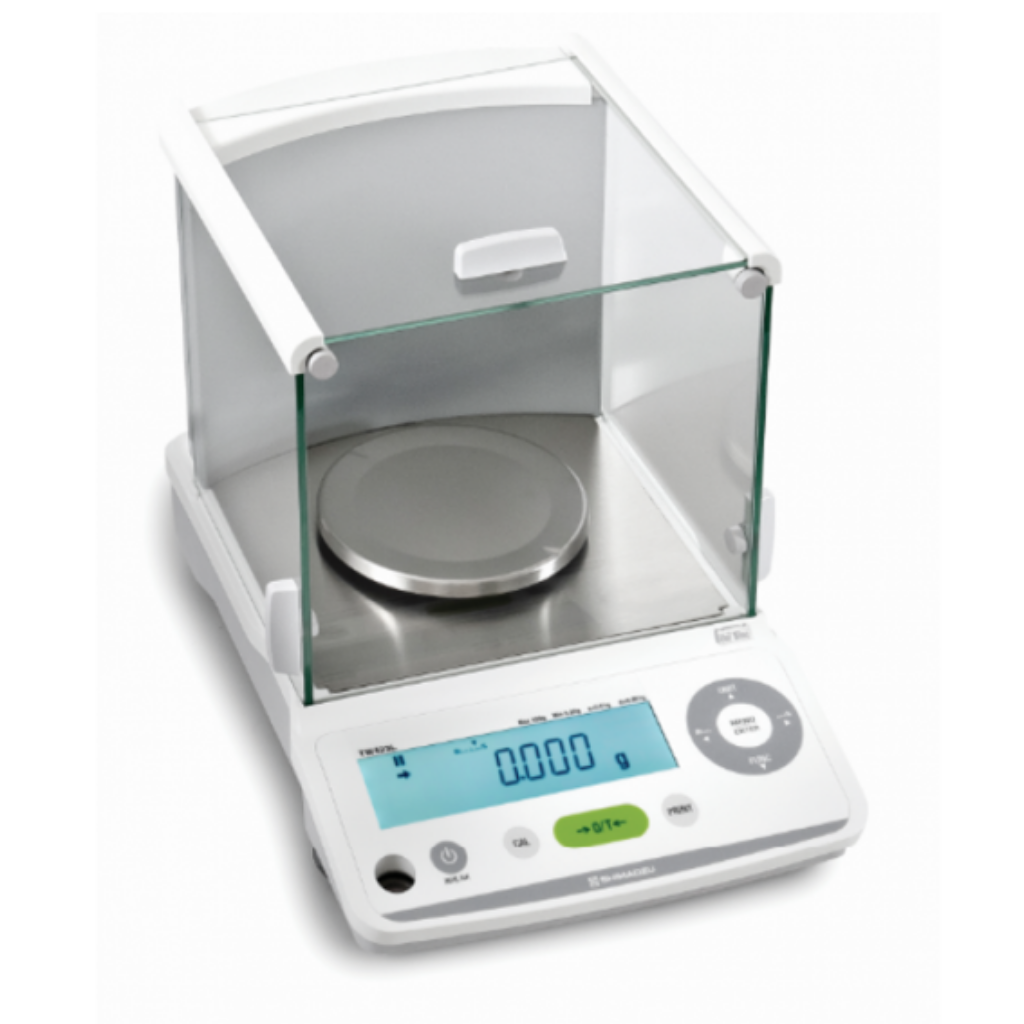

Download detailed product specifications, user manuals, and compliance documents to learn more about the features and technical performance of the TX Series Analytical Precision Balance.
Product Specification
| Approvals: | Non-Approved |
|---|---|
| Capacity: | 220g to 4200g |
| Dimensions: | 110mm ø / 167mm x 181mm |
| Graduations: | 0.001g to 0.01g |
| Power supply: | Mains |
| Warranty: | 1 year warranty |
Additional Features
- Metal housing
- Bright, clear LCD display
- Counting function
- UniBloc technology for instant, high accuracy weight readings
- Windows Direct for easy data communication
- Please note the wind break is only sold as standard for graduations below 0.001g
Downloads & Documents
| General Information | Cleaning Instructions |
|---|---|
| General Information | Warranty Policy |
Frequently Asked Questions
A balance is a high accuracy weighing scale, usually weighing in sub-milligram ranges.
The TX Series is available with a range of capacities and accuracies, with 0.001g (1mg) available as well as a number of options weighing as precise as 0.001ct (0.2mg). To protect the scale from interference, there is a wind chamber - the reading on high accuracy balances like the TX can be affected by wind.
All Shimadzu balances available from Marsden have WindowsDirect software as standard.
This means you can simply connect the balance to your PC via a I/O to RS-232 cable (not included) and send weight data from the balance. The information can auto-populate a spreadsheet whenever ‘Print’ is pressed on the balance. No other software is required.
One of the key elements of this scale is a one-piece aluminium mass sensor. This sensor helps the balance resist deterioration and damage from ordinary impacts.
The TX also has a simple Counting facility. For example the weight of one item, like a tablet, can be recorded - then, a batch can be poured onto the balance and it will calculate how many items are in that sample.
