Marsden AP-200 Axle Weigher

The Marsden AP-200 weighs vehicles to a high accuracy. The vehicle can simply be driven onto the scale and weight reading taken once the wheel has stopped on the pad - static weighing.

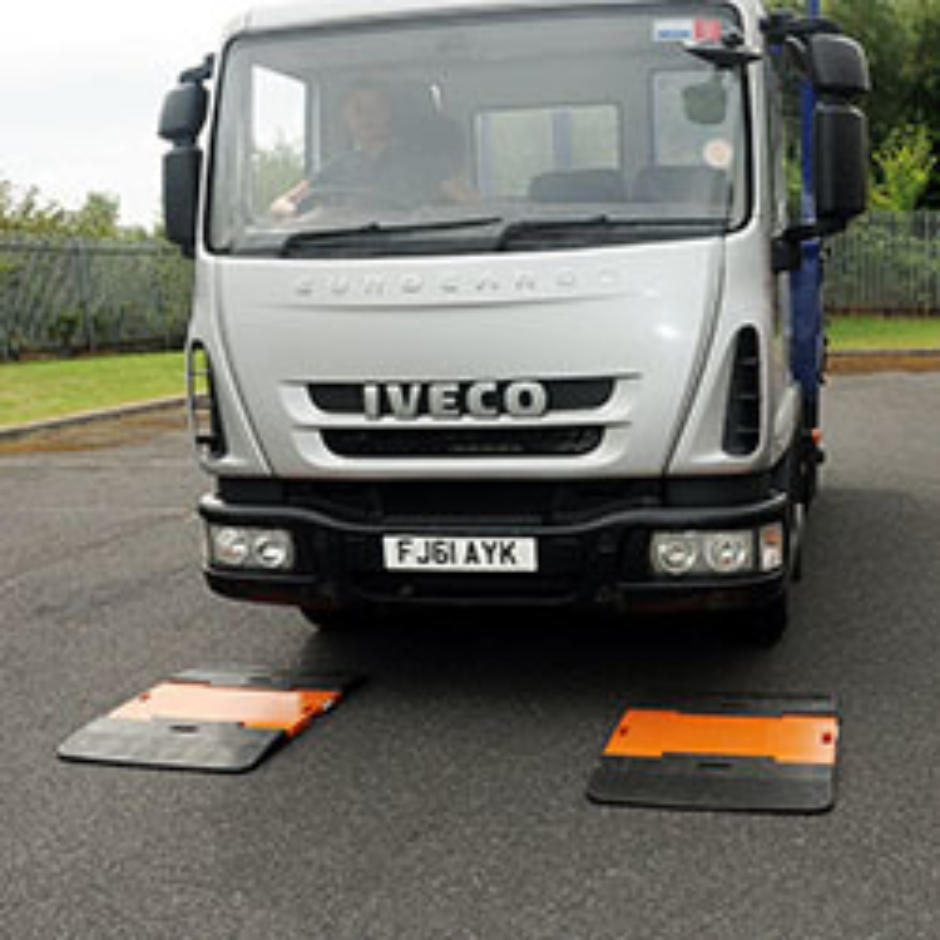

However, for faster weighing of vehicles, this vehicle weighing solution can be used for ‘in motion’ weighing. With the pads laid out on the ground, the vehicle can be driven over the pads at slow speed without stopping. The scale will capture the weight and send it to the indicator.

In motion weighing provides less accuracy than static weighing, but allows you to speed up weighing processes.

In order to avoid fines, vehicles should not weigh more than the legal limit. An easy way to check the weight of a vehicle is by using axle weigh pads.

Axle weighers are portable and far more affordable than installing a weighbridge. They can placed wherever you need to weigh your vehicle and then stored away when not in use. If vehicles need to be weighed at other locations, the AP-200 axle weighing system can be stored in the cab of a lorry or in the back of a van with ease.

The key benefit of the AP-200 – aside from the fact that weight readings can be stored within its internal memory and then exported via USB stick to a PC – is its accuracy. The two pads are connected to one wireless indicator (more pads can be ordered and connected to the indicator on request). The AP-200 then calculates the total weight of the axle, to a highly accurate 10kg.

Choose the AP-200 for advanced axle weighing, when you need to weigh a vehicle quickly and easily. The AP-200 is a high accuracy vehicle weighing solution, without the expense of installing a weighbridge. Each pad has a capacity of 10 tonnes - so up to 20 tonnes per axle can be weighed. Up to eight weighing pads can be connected to the indicator if required.

The AP-200 is a cost-effective way to ensure vehicles are not illegally overloaded. But it's also useful as a highly accurate check weigher before gaining your verified proof of weight.

Additionally, an axle weigher will help you to avoid under-loading - meaning you can maximise loads - or uneven loading, which can increase wear and tear on tyres, steering and braking.

The digital indicator, housed in a tough but lightweight carry case, can provide detailed information of a vehicle’s weight, including left and right wheels, overall weight, and - if the vehicle is moving whilst being weighed - the speed at which the wheels passed over the pads. Driver name and vehicle registration can also be inputted, so weight data can be tied up with the correct vehicle.

Touch-screen operation of the indicator means it’s easy to use and data can be read easily.

An in-built printer means data can be instantly printed out, and USB and RS-232 ports mean the data can also be transferred to a computer, handheld device or external printer.

It is also portable so you can take it on the road with you. Each pad boasts a handle and wheels for ease of movement. Carry cases for the weighing pads are ideal for storage and if the pads are to be regularly transported.
