Marsden Trade Approved Stainless Steel Drive Thru Scale

FREE UK SHIPPING ON ORDERS OVER £400 FOR A LIMITED TIME

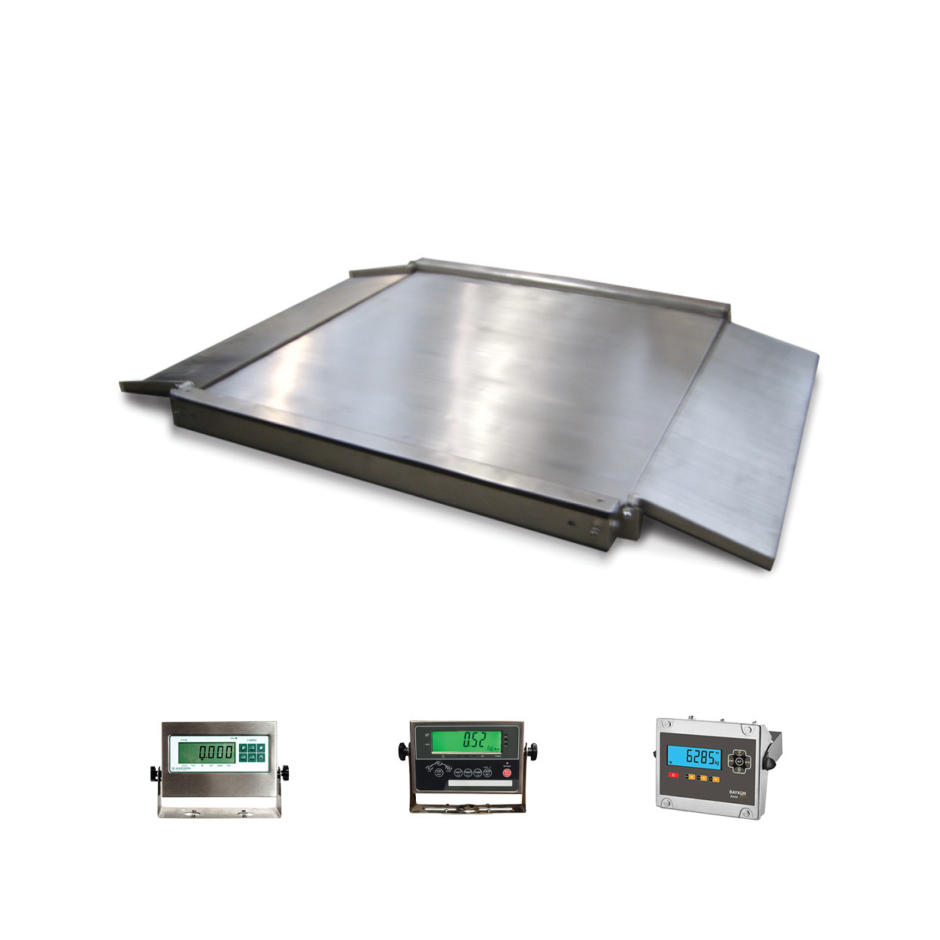

Marsden Stainless Steel Drive Thru weighing scale
Highly durable pallet weighing scale
Ideal for weighing in environments that may be damp, humid or dusty
304 food grade stainless steel meaning this scale is widely used in food processing factories
Please note: The JIK Indicator cannot simultaneously work with the GP-3120 Printer and U-Key

Click here for the Non-Approved version of the Stainless Steel Drive Thru.

Indicator *

Dimensions *

Capacity and Graduation *

Calibration Certificate issued under the QMS +£23.00 Exc. VAT

Godex Sticky Label Printer - For JIK Only +£375.00 Exc. VAT

GP-3120 Sticky Label Printer- For JIK, JWI and JCA +£221.00 Exc. VAT

Hi/Lo Light Tower Alarm - For JIK and JWI +£126.00 Exc. VAT

Industrial Remote Display - For JIK Only +£156.00 Exc. VAT

Relay Board - For JIK +£30.00 Exc. VAT

RS-232 / Scale to PC 1.6m USB Lead - For JWE +£65.00 Exc. VAT

RS-232 / Scale to PC Wireless USB Dongle - For JIK +£90.00 Exc. VAT

Quantity

Total Price

£1,707.00 Exc. VAT (£2,048.40 inc. VAT)

In Stock: Delivery within 2 working days.

Description
Downloads

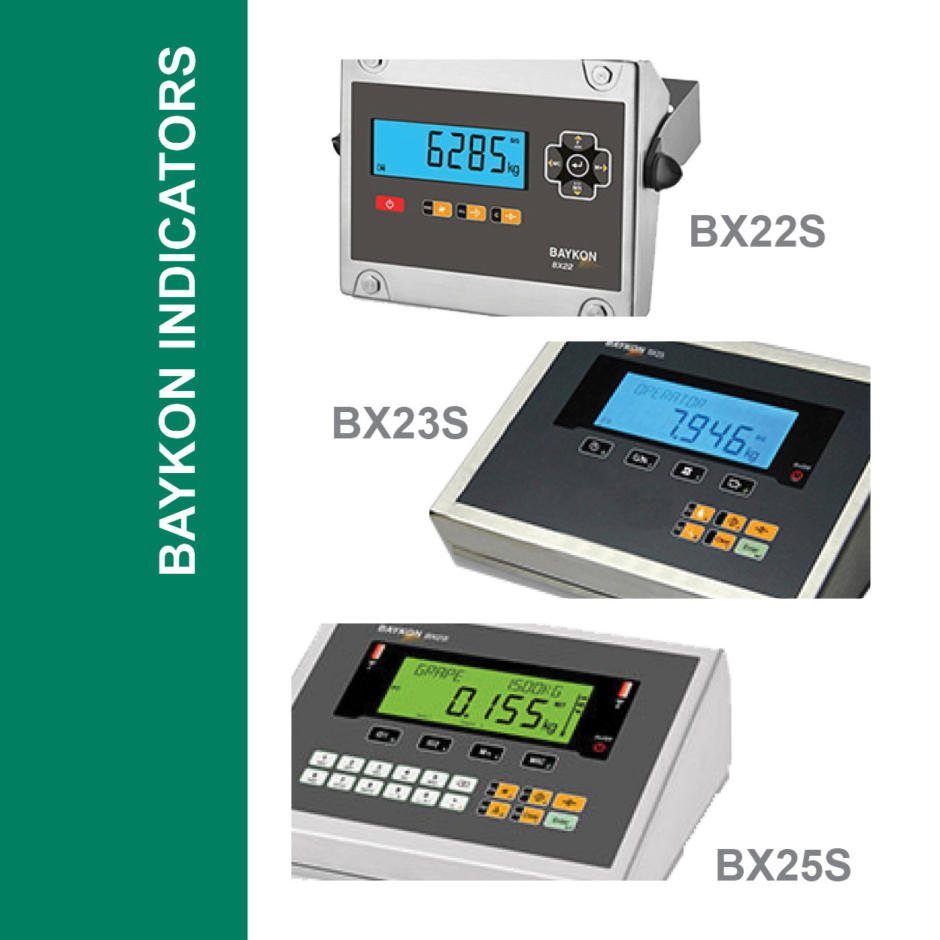

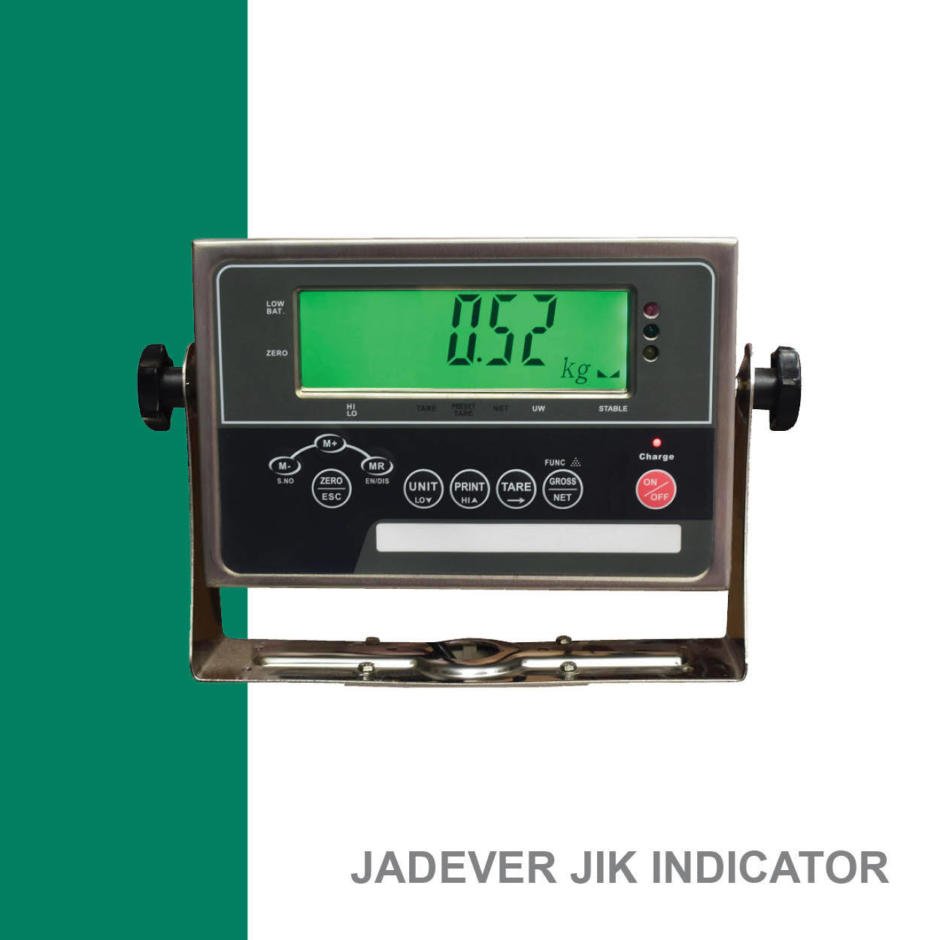

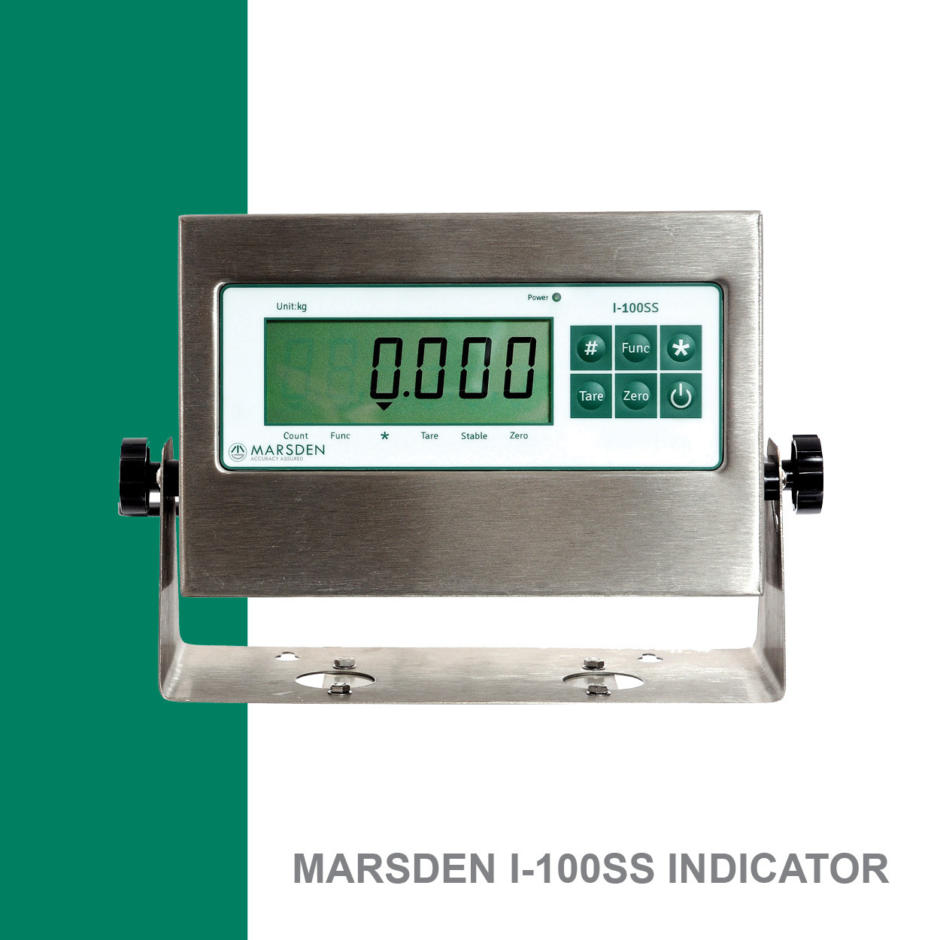

Marsden I-100SS IP65 Indicator	Jadever JIK IP67 Indicator	Baykon Intelligent Indicators
Trade Approved or Non-Approved Indicator IP65 wipe-down stainless steel indicator Best-selling stainless steel indicator LCD weight display with backlight Counting, Zero and Tare function Bracket supplied as standard Mains/Rechargeable	Trade Approved or Non-Approved indicator IP67 splashproof, stainless steel RS-232 board fitted as standard Large backlit display Mains/Rechargeable Wide range of accessories including light tower, printer and u-key for data transfer	Proud stockists of Baykon Intelligent industrial indicators Features including negative weighing, Hi/Lo alarm, tare, etc. Available with a wide range of optional extras to create a truly bespoke weighing device Click above to browse the Baykon range of indicators

Specification

Capacity:
600kg to 1500kg

Graduations:
0.2kg to 0.5kg

Approvals:
Trade/Class III Approved

Warranty:
1 Year Warranty

Dimensions:
Various Options Avaialble

Power Supply:
Mains/Rechargeable

Ramp Length:
300mm

Ramp Width:
Dependant on Base Size

Additional Features

IP68 rated water resistant base
Constructed from 304 food grade steel
Adjustable levelling feet
Customise the scale to your requirements
Available with a wide range of indicators
Ideal for damp, dusty and humid environments
Simple and easy to use
Bespoke options available - Speak to the Marsden team

Downloads

Product Brochures Industrial Scales

DT-SS Product Brochure

General Information Certificates and General Information

What are the benefits of platform scales?

Platform scales are Marsden’s most popular industrial scales - they are strong, durable and perfect for weighing palletised goods. This is an IP68-certified platform scale so can be used in harsh environments. Goods can be loaded onto the platform via fork truck or by pallet truck if this platform scale is ordered with optional ramps.

What is the IP rating?

The Stainless Steel Drive Thru is fitted with IP68 rated load cells. The IP rating refers to protection against water and dust. The first digit (e.g. ‘6’) refers to protection to dust and the second (e.g. ‘8’) is protection against water and other liquids.

IP65 rated scales can be wiped down with a damp cloth. IP67 rated are protected against moisture and can be washed down. IP68 is the highest level of waterproof that Marsden provides and these scales can survive in the most punishing environments. Find out more about IP ratings here.

Why should I choose the Stainless Steel Drive Thru?

Choose the Stainless Steel Drive Thru for accurate, heavy duty weighing in harsh environments. The drive thru platform is IP68 rating so it can be thoroughly washed down after use to keep the scale hygienic. It is widely used in food processing

The platform scale’s base comes in two sizes: 1.2m² or 1.5m².

The 4 x 1000kg IP68 rated loadcells and cables are safely mounted within the structure of the platform, protecting them from damage by fork truck when being moved. A wall bracket is supplied for mounting the indicator.

This weighing platform is available with a wide range of indicators to create a custom weighing device to suit your requirements.
